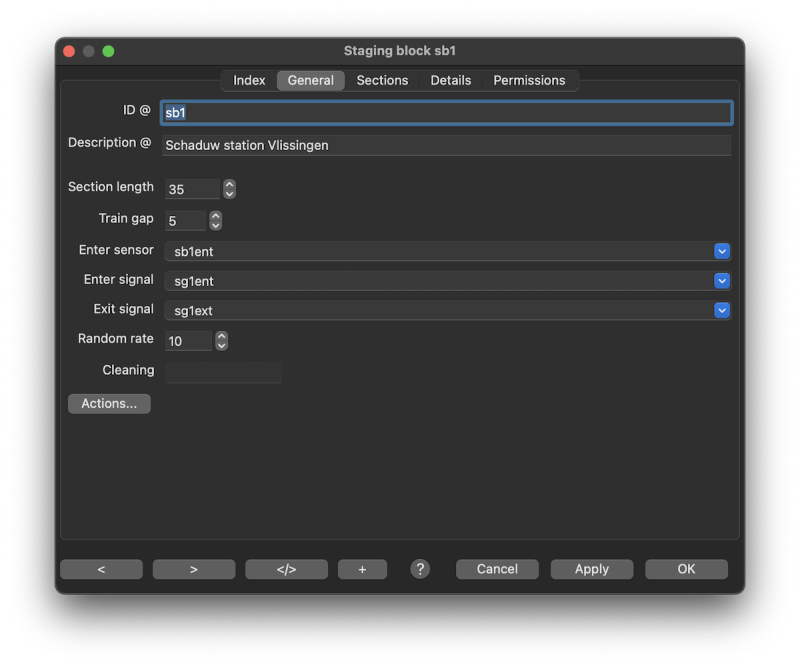

The ID is used through out the Rocrail program as a unique key for referencing this staging block and is therefore very important. If the ID is changed routes using this staging block have to be edited, too.

Free text for display only.

Length of a section in mm, cm or inches.¹⁾

Gap between the trains in mm, cm or inches.²⁾

The first sensor of this staging block.

The optional distant signal for the enter side of the staging block. (Controlled by the Staging Block (so not manual) itself.)

The optional main signal for the exit side of the staging block.
Set the signal to manually operated to be able to control the staging block out flow.

See: Use random block rate

Timestamp of the last visit of a cleaning train in this stage block.

This option is only for trains with the same option activated.
With the Route option is it possible to free up the current route too.
The value "Max. Length" defines that an early release, of the previous block, is only performed for trains up to this length.

See Actions for more details.
Make sure that XmlScripts are set to synchrone; Disable the Asynchrone option.
