Content → Hardware → CTC Modules → CTC Rocrail Configuration → CTC Output Sensor Color Runtime Example

This documentation is based on Rocrail Version 2.1.4441 dated 10.04.2024 .

Use this Rocrail workspace at your own risk: ctc_output_sensor_color.zip

This example was recorded using the Rocrail Properties / Automatic / CTC:

CTC properties: CTC events = ON CTC occupancy priority = OFF CTC black on free = ON

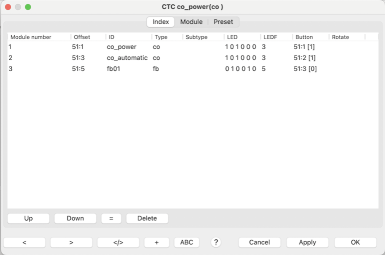

Because there are more outputs than sensors in this example the Preset Color is configured like this:

default Preset Color (Outputs)		special color (Sensors)
	ON = green OFF = red		ON = red OFF = green
	Preset Color = ON		Preset Color = OFF

no.	image	description
1		- Power = OFF - Automatic = OFF - route = free - sensor = OFF
2		- Power = ON - Automatic = OFF - route = free - sensor = OFF
3		- Power = ON - Automatic = ON - route = free - sensor = OFF
4		- Power = ON - Automatic = ON - route = locked - sensor = OFF
5		- Power = ON - Automatic = ON - route = locked - sensor = ON
6		- Power = ON - Automatic = ON - route = free - sensor = ON

This example uses a dummy route "[A-]-[B+]".
The visible route element "[A-]-[B+]" can execute the commands "Lock" and "Reset".
With that the track element of the sensor "fb01" can be illuminated in black or yellow.
