CTC Aspect Color Runtime Example

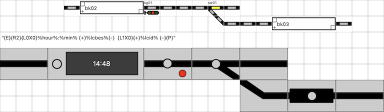

Workspace
This documentation is based on Rocrail Version 2.1.4441 dated 10.04.2024 .
Use this Rocrail workspace at your own risk: ctc_module_aspect_color.zip
CTC Properties
This example was recorded using the Rocrail Properties / Automatic / CTC:
 | CTC properties: CTC events = ON CTC occupancy priority = ON CTC black on free = ON |
Configuration

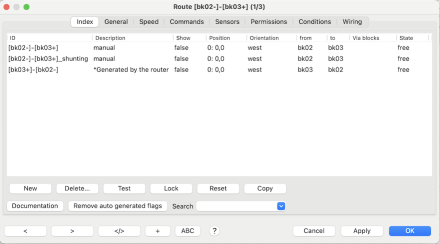

To have a better control of the signal "sg01" there have been configured two routes from the left block to the right block:
The two route configurations differ in the following details:
| Route ID | Commands | Permissions | ||
|---|---|---|---|---|
| [bk02-]-[bk03+] | sg01 | yellow | Shunting | no |
| [bk02-]-[bk03+]_shunting | sg01 | white | Shunting | only |
Runtime Shunting OFF
| no. | image | state left block | state right block | description |
|---|---|---|---|---|
| 1 |  | Occupied | Free | loco is placed in the left block |
| 2 |  | Occupied | Reserved | loco is started and reserves the right block |
| 3 |  | Occupied | Enter | loco enters the right block |
| 4 |  | Free | Occupied | loco is in the right block; a swap is executed |
| 5 |  | Reserved | Occupied | loco is started and reserves the left block |
| 6 |  | Enter | Occupied | loco enters the left block |
| 7 |  | Occupied | Free | loco is in the left block; a swap is executed |
Runtime Shunting ON
| no. | image | state left block | state right block | description |
|---|---|---|---|---|
| 1 |  | Occupied | Free | loco is placed in the left block |
| 2 |  | Occupied | Reserved | loco is started and reserves the right block |
| 3 |  | Occupied | Enter | loco enters the right block |
| 4 |  | Free | Occupied | loco is in the right block; a swap is executed |
| 5 |  | Reserved | Occupied | loco is started and reserves the left block |
| 6 |  | Enter | Occupied | loco enters the left block |
| 7 |  | Occupied | Free | loco is in the left block; a swap is executed |
